Typ Silvex®
Silver Recovery Unit
All you need to know
Specifications.
Drum Capacity
100 ltr. - 400 ltr.
Electrical connected
Load 380V / 3 phases / 50Hz / 3 x 20 A
Required floor space
approx. 1,5 x 1,5 m (bxt) - approx 3,0 x 2,5 m (bxt)
Weight
180 kg - 520 kg
More specifications
Silver Recovery Typ Silvex®
Highlights

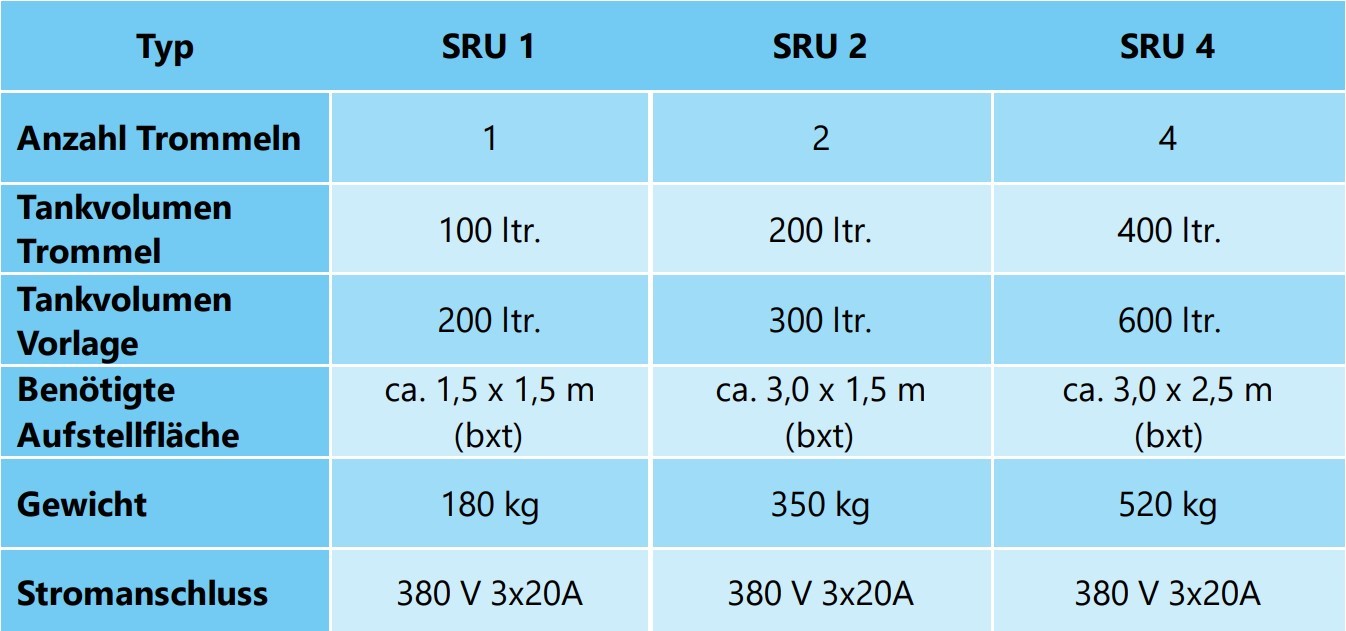

We offer the Units in three sizes
Typ Silvex®
With our Silver Recovery Units ("SRU"), you could recover up to 92% of the silver from chemical processes. This allows you to make a significant contribution to environmental protection while also generating a “small” additional income.
Based on your lab data, we would be happy to calculate the corresponding yield and economic viability.
The Equipment System

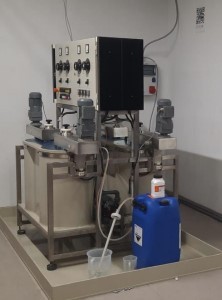

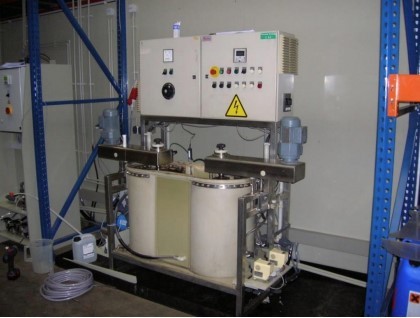

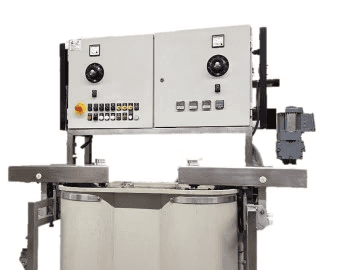

The Units consist of a control cabinet and drums on which the silver is extracted. Here is an illustration of a two-drum system installed in a shelving unit capable of holding all chemical components.
Background information
For more background information on silver recovery in photographic processes, please refer to the overview provided by FUJIFILM Europe: https://www.originalphotopaper.com/unused/silver-recovery/
